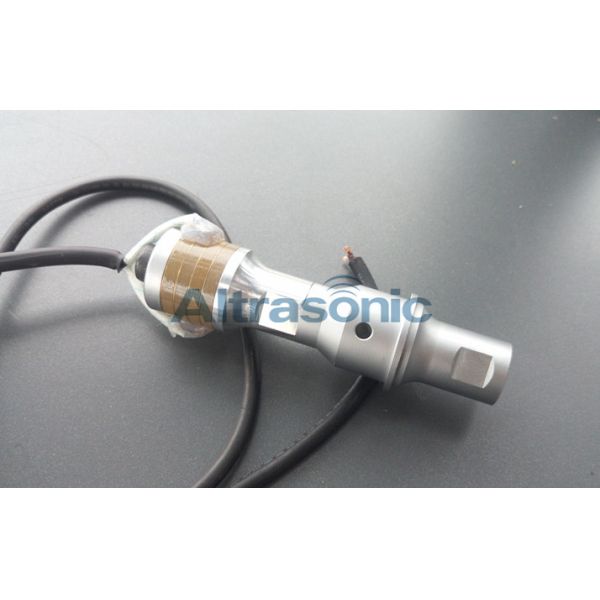

35KHz Ultrasonic Osillator with4 Pieces Import Piezoelectric Sandwiched Ceramic

Brand Name : Altrasonic
Model Number : HS-3535-4D
Certification : CE
Place of Origin : China
MOQ : 1 pcs
Payment Terms : T/T, Western Union
Supply Ability : 200 pcs per month
Packaging Details : 3 working days after receiving full payment
Product Name : 35khz Ultrasonic Transducer with booster
Frequency : 35Khz
Power : 1000W
Connect Screw : M8*1
Ceramic Diameter : 35MM
Qty Of Ceramics : 4pcs
Capacitance : 6-10nf
Application : Cutting or welding
Finish : Depending On Customer's Requirements
Contact Now

35KHz Ultrasonic Osillator with 4 Pieces Import Piezoelectric Sandwiched Ceramic


Specifications:


ModelHS-3535-4D
Frequency35khz
Output power1000watt
Joint boltM8*1
Ceramic disc Diameter35 mm
Quantity of Ceramic discs4 pcs
Capacitance6~10nf
Amplitude6um
ApplicationCutting

Description:


The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


Applications:


Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.


Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.


Competitive Advantage:


1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation


35KHz Ultrasonic Osillator with 4 Pieces Import Piezoelectric Sandwiched Ceramic
