Rinco Type Ultrasonic Transducer Replacement High Performance

Name: Rinco Type Ultrasonic Transducer Replacement High Performance
Brand: Altrasonic
Price: 1 USD

Wholesale Rinco Type Ultrasonic Transducer Replacement High Performance from china suppliers

Brand Name : Altrasonic

Model Number : HSR-35

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T or western Union

Supply Ability : 1000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Ultrasonic Transducer

Joint bolt : M18*1..25

Type : The upside-down trumpet Type

Application : Welding

Amplitude : 12um

Quantity of Ceramic discs : 2 pcs

Output power : 900W

Frequency : 35K

Contact Now

Rinco Type Ultrasonic Transducer Replacement High Performance

Introduction:

This ultrasonic transducer is a high copy series, cost-effective, all parts are new.

Specifications:

Model	HSR-35
Frequency	35khz
Output power	9000watt
Joint bolt	M18*1.25
Ceramic disc Diameter	25mm
Quantity of Ceramic discs	2pcs
Amplitude	12um
Application	Welding

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applications:

Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

Ultrasonic transducers are widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

Competitive Advantages:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

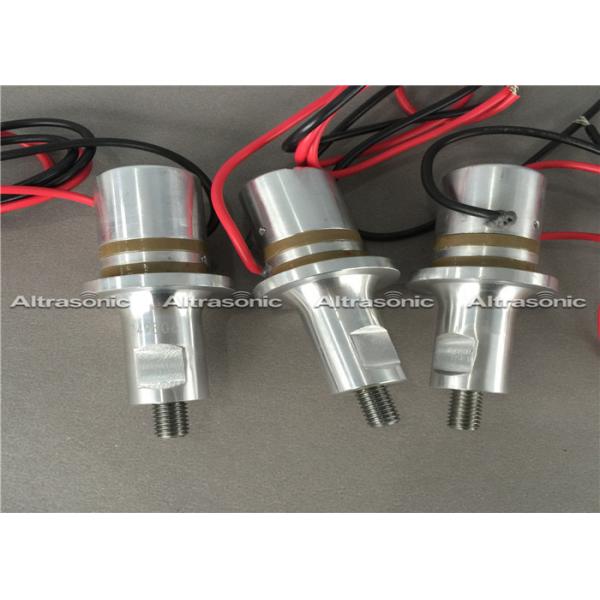

Detailed Images:

Rinco Type Ultrasonic Transducer Replacement High Performance
